Electrostatic Charging Simulator
Explore conduction and induction while tracking how charge, distance, and force change in real time.
Charging Method
Rod Charge
Quick Actions
Visualization Options
Test Your Understanding
Answer these questions to check your understanding of electrostatic charging concepts:
1. When a negatively charged rod touches a neutral conducting sphere, the sphere becomes:
Correct Answer: B) Negatively charged
During conduction, electrons flow from the negatively charged rod to the neutral sphere, making the sphere negatively charged.
2. When a positively charged rod is brought near (but not touching) a neutral conducting sphere, the sphere will:
Correct Answer: C) Remain neutral overall but become polarized
During induction without grounding, the sphere remains neutral overall but becomes polarized with the near side negative and the far side positive.
3. If a positively charged rod is brought near a grounded metal sphere, then the ground connection is removed while the rod is still nearby, the sphere will be:
Correct Answer: B) Negatively charged
With a positively charged rod nearby, electrons flow from ground into the sphere. After removing the ground connection, the sphere has excess electrons and is negatively charged.
4. When a neutral object is attracted to a charged object, this is most likely due to:
Correct Answer: C) Induced polarization in the neutral object
When a charged object approaches a neutral object, it induces polarization, creating an opposite charge on the near side that causes attraction.
5. If you charge a conducting sphere by induction with a negatively charged rod and grounding, then remove the ground and the rod, how will the sphere be charged?
Correct Answer: B) Positively charged
The negatively charged rod repels electrons to the far side where they flow to ground. When the ground is removed, the sphere has lost electrons and is left with a net positive charge.
How Electrostatic Charging Works

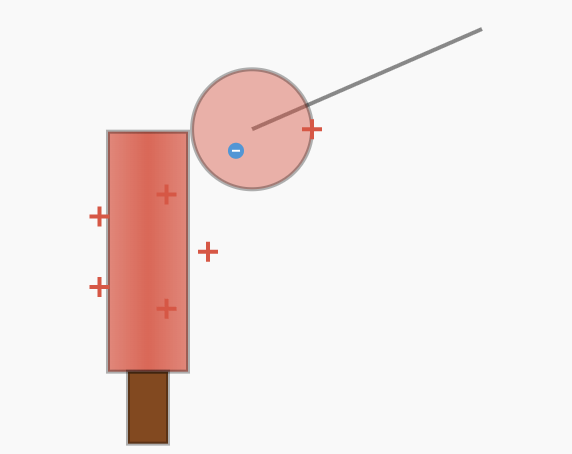

Charging by Conduction
In conduction, a charged rod directly contacts the neutral ball, allowing electrons to flow between them:
- Negatively Charged Rod: Electrons flow from rod to ball, making the ball negatively charged.
- Positively Charged Rod: Electrons flow from ball to rod, making the ball positively charged.
- In both cases, the ball gains the same type of charge as the rod.
- After separation, the rod and ball repel each other (like charges repel).

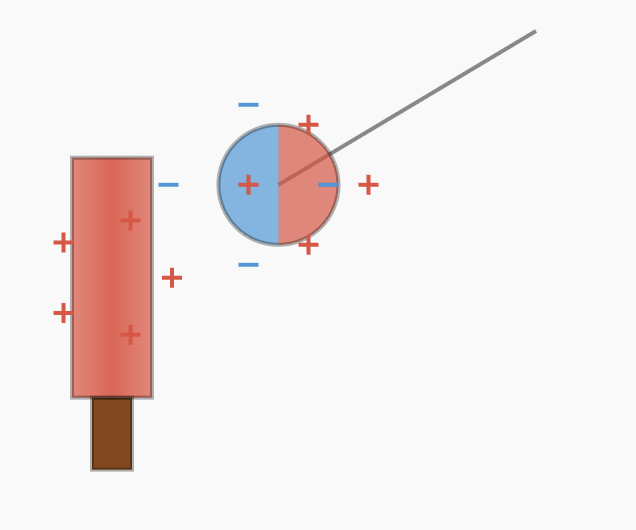

Charging by Induction
In induction, the charged rod is brought near but doesn't touch the ball:
Without Grounding:
- Negatively Charged Rod: Electrons in the ball are repelled to the far side, creating a positive charge on the near side.
- Positively Charged Rod: Electrons in the ball are attracted to the near side, creating a positive charge on the far side.
- The ball remains neutral overall but becomes polarized.
- The ball is always attracted to the rod due to the opposite charge on the near side.

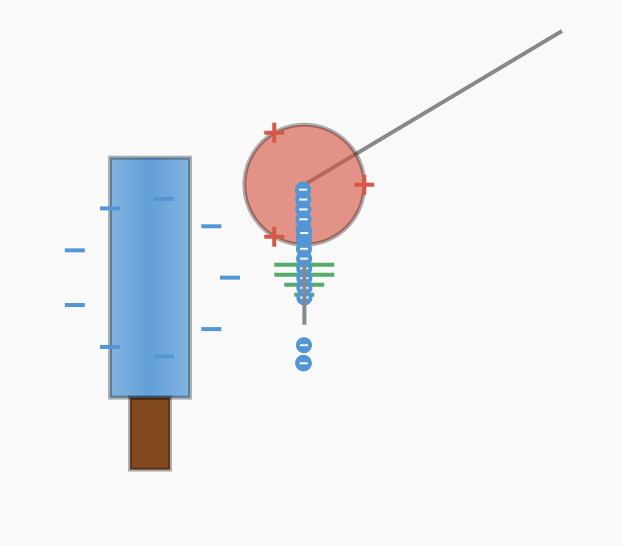

Induction with Grounding
- Negatively Charged Rod: Electrons repelled to far side flow to ground, leaving the ball positively charged.
- Positively Charged Rod: Electrons flow from ground into the ball, making it negatively charged.
- After removing the ground and then the rod, the ball retains a charge opposite to that of the rod.
- The charged ball is attracted to the rod (opposite charges attract).
Try It Yourself:
- Change the rod charge to negative.
- Ground the ball and bring the rod near (but don't touch).
- While the rod is nearby, unground the ball.
- Remove the rod and observe what happens.
Key Principles
Electron Movement
Only electrons move during charging; protons remain fixed in place.
Forces
Like charges repel each other; unlike charges attract each other.
Conservation
Total charge is conserved during all charging processes.
Try It Yourself:
- Change the rod charge to negative.
- Ground the ball and bring the rod near (but don't touch).
- While the rod is nearby, unground the ball.
- Remove the rod and observe what happens.
